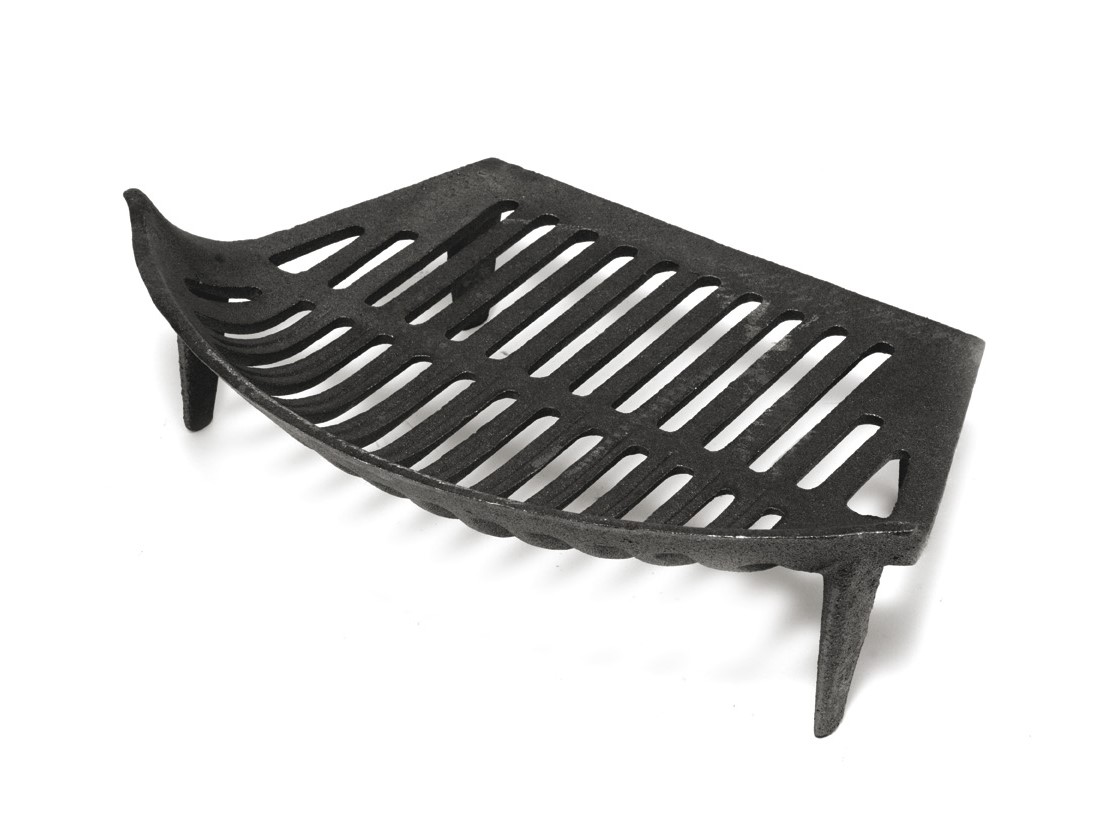

The Stool Grate is a classic bowed grate with four legs allowing it to stand freely in the fireplace opening and a raised front to stop fuel spilling forward.
Made from cast iron, suitable for burning solid fuels such as coals, logs or smokeless fuels.
Available in four sizes, as well as heavy duty options.
12": 280mm(A) x 218mm(B) x 170mm(C) x 80mm (D)
FDC Code: SPG1
14": 325mm(A) x 235mm(B) x 200(C) x 85mm (D)
FDC Code: SPG2
16" 370mm(A) x 268mm(B) x 255mm(C) x 75mm (D)
FDC Code: SPG3
16" Heavy Duty: 370mm(A) x 268mm(B) x 255mm(C) x 75mm (D)
FDC Code: SPG3HD
18" 430mm(A) x 290(B) x 300mm(C) x 92mm (D)
FDC Code: SPG4
18" Heavy Duty: 430mm(A) x 300(B) x 290mm(C) x 92mm (D)
FDC Code: SPG4HD
Stool Grate

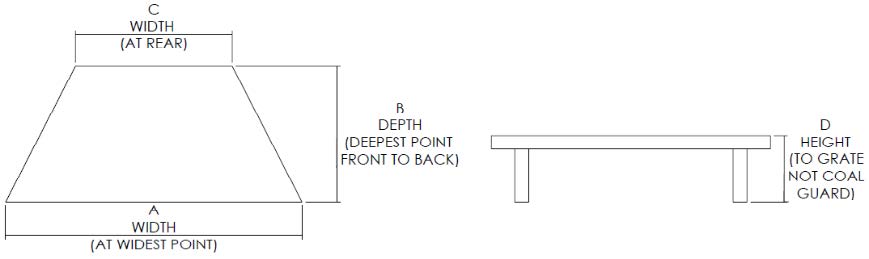

Bottom Grate Guide to Measuring
